680nm Red Light VCSEL Laser Diode Chip
Healthcare, Beauty and Skin Treatment, Consumer Electronics, Industrial Testing, LLLT, PBMT, Pulse Oximetry, Laser Facial, Skin Rejuvenation, Proximity Sensing, AR/VR, LiDAR, Facial Recognition, Material Surface Defect Detection or Spectrometer

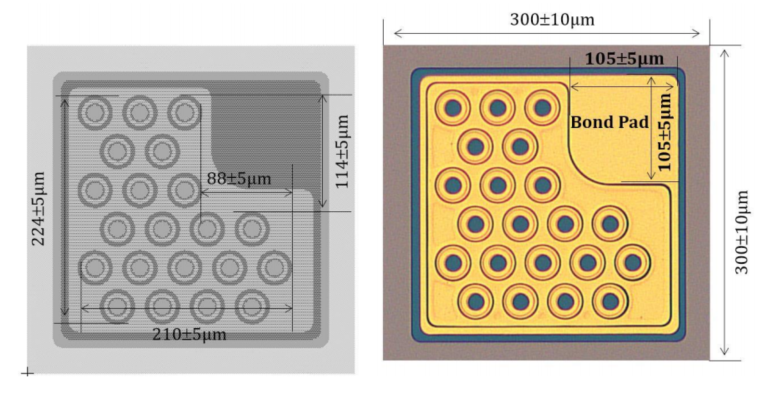

680nm/50mW/13Mil
Share to:
Threshold Current:TYP. 32mA
VF:Typ. 2.75V
Output Power:Typ. 50mW
Wavelength:675nm-680nm
PCE:15%
Angle:23 deg
Die Size:300μm*300μm
Die Thickness:130μm
Number of Emitters:21
Bond Pad Size:300μm*300μm
Suitable for pulse power applications and the power is 50mW
25 ℃,QCW Mode (pulse length 0.5ms, 1% Duty Cycle )
- Qualified Sample
- Batch
- Stock
- Free Sample

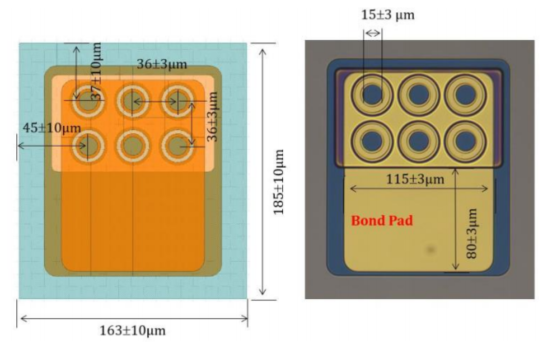

680nm/18mW/7Mil
Share to:
Threshold Current:TYP. 6.2mA
VF:Typ. 2.7V
Output Power:Typ. 18mW
Wavelength:675nm-680nm
PCE:18%
Angle:23 deg
Die Size:163μm*185μm
Die Thickness:130μm
Number of Emitters:6
Bond Pad Size:115μm*80μm
Suitable for pulse power applications and the power is 18mW
25 ℃,QCW Mode (pulse length 0.5ms, 1% Duty Cycle )
- Qualified Sample
- Batch
- Stock
- Free Sample

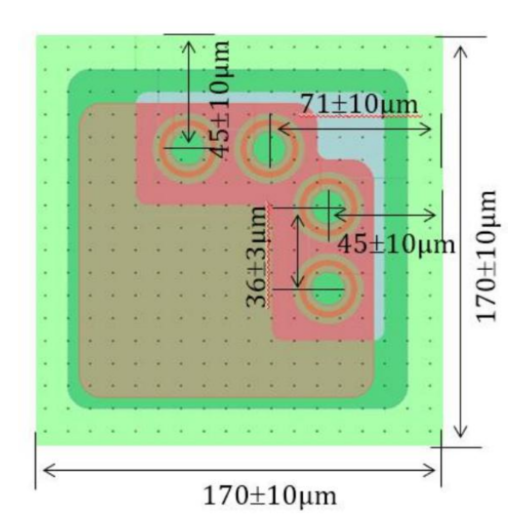

680nm/12mW/7Mil
Share to:
Threshold Current:TYP. 4.0mA
VF:Typ. 2.7V
Output Power:Typ. 12mW
Wavelength:675nm-680nm
PCE:20%
Angle:23 deg
Die Size:170μm*170μm
Die Thickness:130μm
Number of Emitters:4
Bond Pad Size:87μm*85μm
Suitable for pulse power applications and the power is 12mW
25 ℃,QCW Mode (pulse length 0.5ms, 1% Duty Cycle )
- Qualified Sample
- Batch
- Stock
- Free Sample

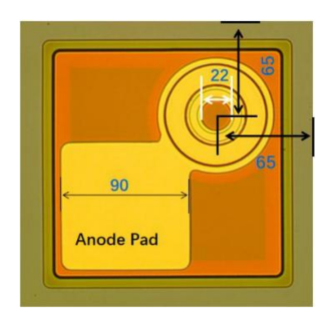

680nm/5mW/8Mil
Share to:
Threshold Current:TYP. 2.6mA
VF:Typ. 2.5V
Output Power:Typ. 5mW
Wavelength:675nm-680nm
PCE:20%
Angle:22 deg
Die Size:200μm*200μm
Die Thickness:130μm
Bond Pad Size:90μm*90μm
Suitable for pulse power applications and the power is 5mW
25 ℃,QCW Mode (pulse length 0.5ms, 1% Duty Cycle )
