680nm Red Light VCSEL Laser Diode SMD
Healthcare, Beauty and Skin Treatment, Consumer Electronics, Industrial Testing, LLLT, PBMT, Pulse Oximetry, Laser Facial, Skin Rejuvenation, Proximity Sensing, AR/VR, LiDAR, Facial Recognition, Material Surface Defect Detection or Spectrometer
680nm/5mW/5730
Share to:
Threshold Current:TYP. 2.45mA
VF:Typ. 2.6V
Output Power:Typ. 5mW
Wavelength:675nm-685nm
ESD:Zener
Angle:22 deg
Chip specification:8mil*8mil
Suitable for pulse power applications and the power is 5mW
25 ℃,QCW Mode (pulse length 0.5ms, 1% Duty Cycle )
- Qualified Sample
- Batch
- Stock
- Free Sample

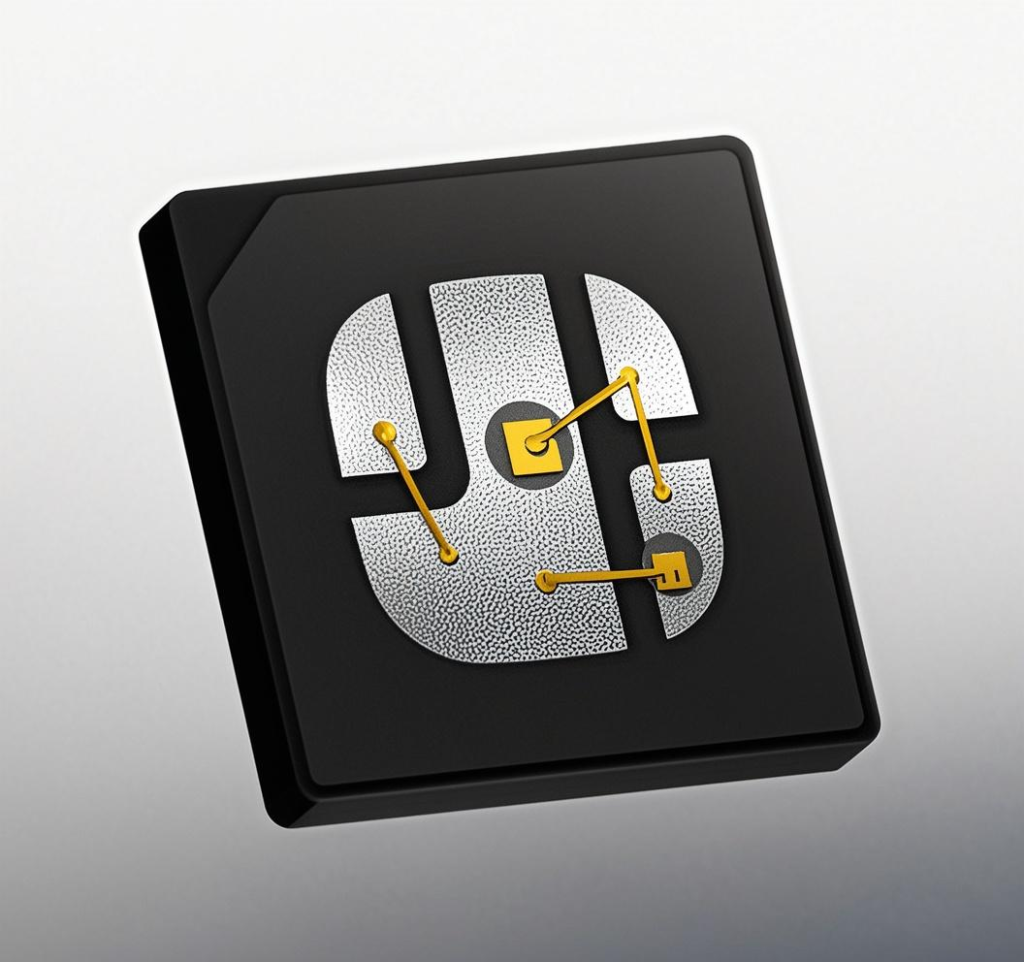

680nm/5mW/2121
Share to:
Threshold Current:TYP. 2.6mA
VF:Typ. 2.5V
Output Power:Typ. 5mW
Wavelength:675nm-680nm
Angle:22 deg
Chip specification:8mil*8mil
- Qualified Sample
- Batch
- Stock
- Free Sample
680nm/5mW/2835
Share to:
Threshold Current:TYP. 2.6mA
VF:Typ. 2.6V
Output Power:Typ. 5mW
Wavelength:673nm-687nm
ESD:Zener
Chip specification:8mil*8mil
Suitable for pulse power applications and the power is 5mW
- Qualified Sample
- Batch
- Stock
- Free Sample
